Browser Build:  Customize your Loop app

Customizations are the way to create your own personalized Loop app.  Before you start to customize your Loop, you must successfully complete the Build Loop action.

This page explains how to customize your Loop app using the Browser Build for prepared customizations that are available in the Customization Select script. Learn more about other customization options by clicking the links above.

1. Overall Instructions for Browser Build
2. Template for Browser Build
   • Customization Template – main
   • Customization Template – dev branch
3. Updating Your Fork

The process is the same regardless of which of the customization templates that you use.

• Complete instructions are found below, Customize Browser Build

• Once you add your customizations to the build_loop.yml file, it should work every time you run Action: Build Loop and typically continues to work across updates

Browser Build Overview

To customize with the Browser Build method, you need to modify your build instruction file, also known as your build_loop.yml file using these steps:

1. Locate the Paste Line  (in build_loop.yml file)
2. Copy (from the appropriate template)
3. Paste (in build_loop.yml file)
4. Edit (the template for your needs)
5. Save or Cancel (in build_loop.yml file)
6. Build Loop
7. Troubleshoot (if necessary)

Locate the Paste Line

• Make sure you are logged into your GitHub account.  If you are not logged in, you will see Sign In/ Sign Up in the upper right corner
• Navigate to this link and substitute your GitHub username for username:

https://github.com/username/LoopWorkspace/blob/main/.github/workflows/build_loop.yml

• There is a pencil on the right side – tap on the pencil and now you can edit the file

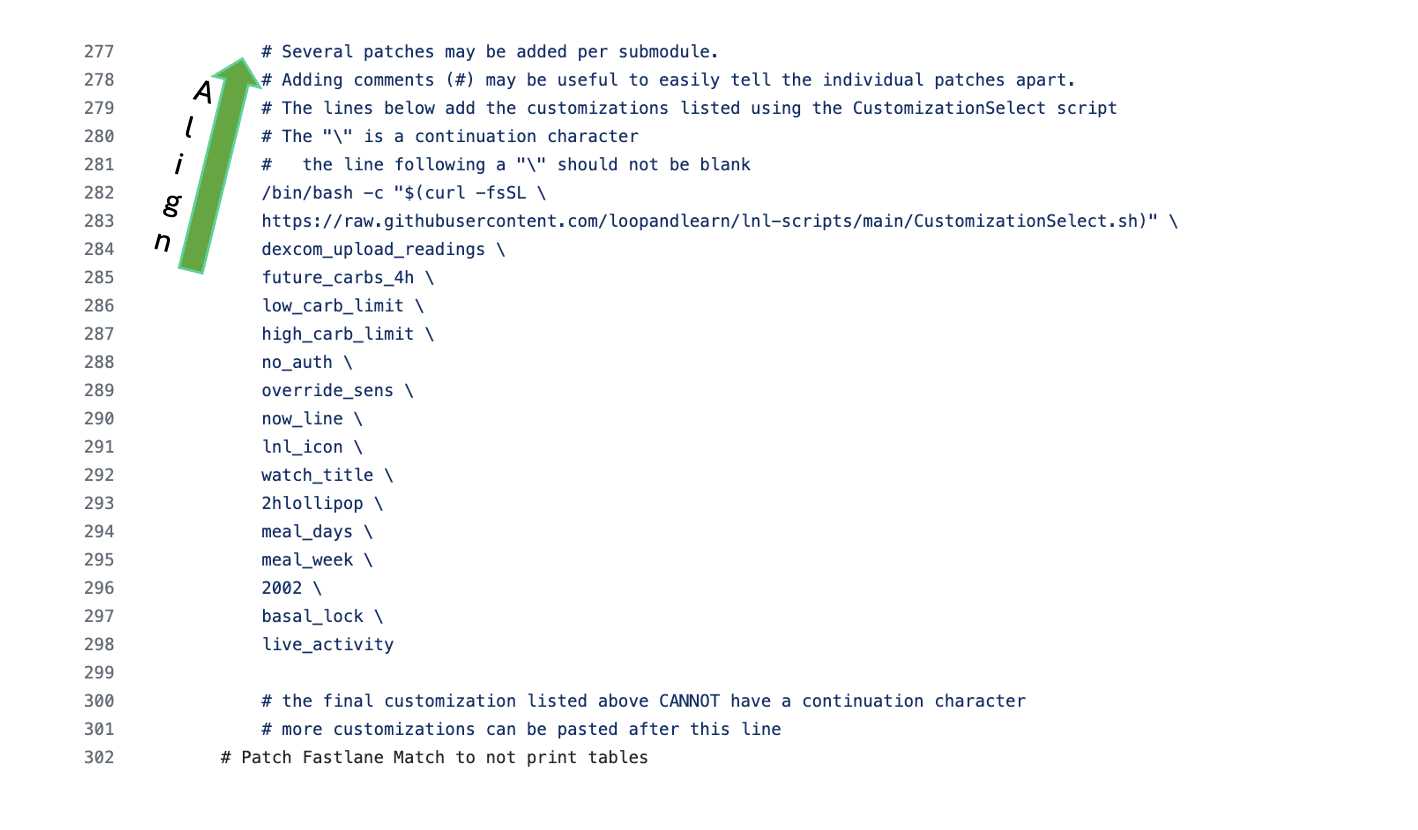

• Refer to the graphic below
• You need to find the line that starts with “# Patch Fastlane” (you will paste the template above this line)
• Use command-f (on a Mac) or control-f (on a PC), to find this phrase (use copy button below) and then command-v (on a Mac) or control-v (on a PC) to paste it into the search bar

# Patch Fastlane Match to not print tables"

• There is a blank line just above “# Patch Fastlane Match to not print tables”.  We’ll call this row your Paste Line
• As of 21 July 2024, the Paste Line is on  279 for Loop-main, but is subject to change

Copy

WARNING – the template only works from the original language version – do not copy and paste from a translated page.

How to Copy:

• Click on one of the lines in the template below to copy the entire template to your paste buffer
• The words “Copied to Clipboard” will appear briefly.

Customization Template – main

This template is for Loop 3.4.x, released 13 July 2024 or later



          # The lines below add the customizations listed using the CustomizationSelect script
          # The "" is a continuation character
          #   the line following a "" should not be blank
          /bin/bash -c "$(curl -fsSL \
          https://raw.githubusercontent.com/loopandlearn/lnl-scripts/main/CustomizationSelect.sh)" \
          dexcom_upload_readings \
          future_carbs_4h \
          low_carb_limit \
          high_carb_limit \
          override_sens \
          now_line \
          lnl_icon \
          watch_title \
          2hlollipop \
          meal_days \
          meal_week \
          profiles \
          basal_lock \
          live_activity

          # the final customization listed above CANNOT have a continuation character
          # more customizations can be pasted after this line



Customization Template – dev branch

Alert:  No one should be building dev branch unless they are an expert.  This section is a placeholder in case it is needed later. Use the Customization Template – main until told otherwise.

Paste

• Use the space bar to make sure that your cursor lines up in the correct column on the Paste Line.
• Paste (using either command or control-v, depending upon whether you’re using a Mac or PC) the copied content into your build_loop.yml file at the Paste Line
• After pasting, hit return to insert another blank line

Edit

• This template includes all customizations for your convenience
• Make sure the lines you pasted are in the same column as the lines above your new lines
• Delete any customizations you don’t want
• Do not delete the script lines that come above dexcom_upload_readings.
• Some customizations are incompatible and you must choose which one to remove
  • You cannot include both low_carb_limit and high_carb_limit; choose one or neither
  • You cannot include both meal_days and meal_week; choose one or neither
• Do not try to put in a # symbol to remove a customization, you must delete the whole line
• Edit and save as often as you need
• If you want to disable authentication, you must type it in yourself
  • You must add the “no_auth” yourself (no quotes) – it can be on the same line as another customization, separated by a space, or you can make a separate line following the pattern in the template
• All but the last line ends in a continuation character \
  • There can be nothing after that on any line
  • If you insert spaces after the \, your build will fail
• The last customization in the list cannot end with the continuation character \. if one is there, you must remove it
